RD RD6030 Completed Set 60V 30A digital control Stabilized AC DC adjustable Voltage Regulated Lab Bench Power Supply 1140W 1440W

Description

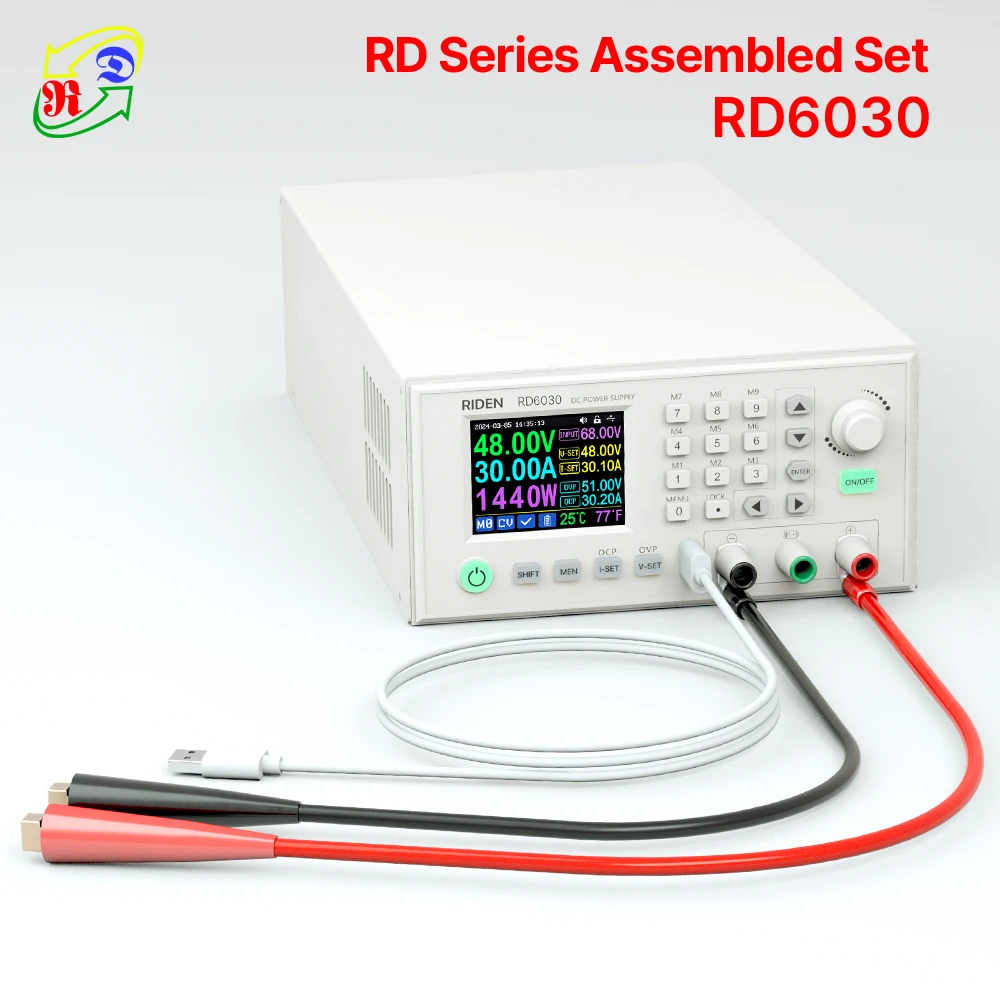

Model: RD6030 Completed Set(1500W PSU)

Input voltage range: 100-120V/200-240V AC

Output voltage range: 0-60.00V

Output current range: 0-30.00A

Output power range: (AC220V)0-1440W/(AC110V)0-1140W(the max power shows in the option title)

Output voltagesetting measurement resolution: 0.01V

Output current setting measurement resolution: 0.01A

Battery voltage measurement resolution: 0.01V

Output voltage accuracy:±(0.3%+3digits)

Output currentaccuracy:±(0.5%+5digits)

Battery voltage measurement accuracy: ±(0.5%+3 digits)

Automatic cut off current valuewhen charging: Set by yourself(higher than 100mA)

Output ripple typical: 50mV@15A, 90mV@30A VPP

Working temperature range: -10℃~40℃

External sensor Temperature detection range:-10℃~100℃/0℉~200℉

External sensor Temperature detection accuracy:±3℃/±6℉

Constant voltage moderesponse time: 2ms（0.1A-5A Load）

Constant voltage mode load regulation: ±(0.1%+2 digits)

Constant current mode load regulation: ±(0.1%+3 digits)

Capacity measurement range: 0-9999.99Ah

Energy measurement range: 0-9999.99Wh

Capacity and energy statistical error: ±2％

Over temperature protection: System temperature>80℃

Screen brightness setting: 0-5(6 level in total)

Screen: 2.4inch color HD display

Cooling fan start condition: Output current>8A or System temperature>45℃

Cooling fan shut down condition:Output current <7.9A and System temperature <40℃

1,Instruction:

RD6030 Completed Set set operation instructon, PC software instruction and PC software download link:

https://drive.google.com/drive/folders/1_pv3ctOA_koShQ6Qiu1CZVCluHVD47TL?usp=share_link

	RD6006	RD6012	RD6018	RD6024	RD6030	RD6030-Max	RD6006P	RD6012P	RD6012P– Max
Display digit	4-digit						5-digit
Output voltage range	0-60V
Output current range	0-6A	0-12A	0-18A	0-24A	0-30A		0-6A	0-12A
Output power range	0-360W	0-720W	(AC220V)0-1080W (AC110V)0-950W	(AC220V)0-1440W (AC110V)0-1140W	(AC220V)0-1440W (AC110V)0-1140W		0-360W	0-720W
Output voltage resolution	0.01V						0.001V
Output current resolution	0.001A	0.01A					0.0001A	0.001A/0.0001A
Output voltage accuracy	±(0.3%+3 digits)						±(0.5‰+4 digits)
Output current accuracy	±(0.5%+5 digits)						±(1‰+6 digits)
Output ripple typical	100mV VPP	250mV VPP@6A		100mV@12A /150mV@24A VPP	50mV@15A /90mV@30A VPP		20mV VPP①
Screen size	2.4 Inch					3.2 Inch	2.4 Inch		3.2 Inch
Size	About 17.3*9.2*33.6 cm
Support USBcommunication	Yes
Support WiFi communication	No

20MHz of bandwidth on your oscilloscope with a 0.1uF parallel capacitor at the output terminals

1,Instruction video：

a.section 1.4.2.1Battery Charging Function Introduction:https://youtu.be/irTbqfqtgU0

b.section 1.4.2.2Output Voltage and Output Current Setting:https://youtu.be/S6Kan66dNsk

c.section 1.4.2.3Data Group Quick Storage and Call out:https://youtu.be/eo5saPjOGpo

d.section 1.4.2.4Keypad lock and unlock:https://youtu.be/zxpmasJyQ6Y

e.section 1.4.2.5System Setting:https://youtu.be/Q9d3rIgIrOc

f.section 1.4.2.6Main Page Style Setting:https://youtu.be/f51VDiY2VHE

g:section 1.4.2.7Storage Data Setting:https://youtu.be/i1kTeurS13I

h:section 1.4.2.8System Information:https://youtu.be/Um4NQObeeJE

i:section 2.1.2IOS APP Download, Installation and Connection:https://youtu.be/nH2HYwop0TE

j:section 2.4.2IOS APP Operation:https://youtu.be/lXSw1CM9IY8

k:section 3.1.1/3.2.3.2Android APP Download, Installation and Connection:https://youtu.be/QwyBEUCnp9c

l:section 3.2.3.3Anroid APP Operation:https://youtu.be/hqrF4keTfbE

m:section 4.1/4.3.1PC Software Download and basic operation:https://youtu.be/mjt1RMaah1Y

o:section 4.3.2Firmware Upgrade:https://youtu.be/NOoLfDw0DiY

p:section 4.3.3Calibration:https://youtu.be/c9sn1wY2mjE

q:section 4.3.4Logo Update:https://youtu.be/vuVhBsohWts

r: RD6006 wifi connection Problem and solution:https://www.youtube.com/watch?v=7sTtc1kweJM

2, Actual Test Video

1. Q: Does this device has WiFi function?

A: RD6030 assembled full set doesn’t have WiFi function. It only support to use USB micro cable to connect PC software, you need to order the WiFi board separtely to connect APP if you want the WiFi function

2. Q: What can I get in this link?

A: the option title and pictures shows what you can get, please check and make the order.

3. Q: Why the product I get is a bit different with the picture?

A: We keep updating the product hardware and software to make the device better, so the internal material details may be different, but it does not affect you to use the functions.

4.Q: the input AC to DC switch power supply has high frequency noise, is that normal?

A: It is normal because the input AC to DC switch power supply is industrial grade products, so that it will have this noise, but it does not affect the working performance, please notice that

5.Q: Can I use it to power on inductive load?

A: If you connect inductive load (such as motor), the max working voltage and current is 1/3 of full range. don’t exceed it.

6. Q:why there is a fuse in the box? Should I install it?

A:It is a BACKUP fuse in the, if you burn the fuse with wrong operation, you can insert the fuse in the socket next to the burned one for temporary use and it supports only 10A, so it is better to remove the damaged fuse and solder the good fuse on the same position for full output.

7. Q: can I remove the case of the PSU for better heat dissipation?

A: when install our PSU into the case, please follow our instruction to assemble, do not remove the shell of the PSU to use. After removing the shell of the switching power supply, the structural change of the heat dissipation system will lead to insufficient heat dissipation,and some components will be overheated and damaged, in this case we don’t offer after sell service

8.Q:I see some traces on the panel, is this means damaged?

A:Affected by the injection molding process, there are slight traces at the button holes of the shell. It can hardly be found in normal use. It can be found under the light (the shell is not crafts, don’t be overly picky). as shown in picture, if you care, please don’t buy this product

SOFTWARE QUESTIONS:(you need to order WiFi board separately)

1. Q: The APP crashes on my phone, what the problem is?

A: For APP and PC software, because there may be incompatibilities problems, please download first before buying , if you can download and install, you can make order, or else stop buying. If you don’t test the PC software and APP function before buying and find that the products works fine except the PC software or APP, we refuse to refund.For PC software, it only support win 7 and above for now. For APP, it only support android 8.0 and above.

2. Why cannot I connect the RD6024W to my phone APP via WIFI?(you need to order WiFi board separately)

A: Please check if the WIFI board is inserted properly, then check if the WIFI is 2.4G Hz and if you shut down the client isolation/ AP isolation and WMM function, and check if you turn on the location service and storage service when you install the APP. If there is still problem, contact us.

3.Why cannot I connect the RD6024W to PC via WIFI while I can connect to the Phone?(you need to order WiFi board separately)

A:WiFi connection is a test function, due to poor compatibility of some computers, if you cannot connect PC software via WiFi, please ignore this function. Forthis function, we do not provide any guarantee and technical support, and we will decide whether to keep this function based on customer feedback
