NANKADF DC Power Supply, 0-30V 0-10A with High Accuracy 4-Digit LED Display, 5V/2A USB Port, Encoder Adjustment N-GA3010H

Product Description

NANKADF’s new series products. This model is a miniature switching DC power supply. The output voltage and current can be controlled and adjusted Encoder adjustment, so it provides more convenience and accuracy in the adjustment of voltage and current. The panel also provides high-precision two/three-window digital tube display of voltage, current , so that users can intuitively see the current use status and various parameters of the machine

The GA series power supply can display USB A charging voltage and current

1.Small size, light weight and high power density. weight of only 2.6 pounds. You can easily take the DC power supply to work.

2.Constant pressure and constant current switch automatically.

3.LED display of voltage, current, high precision and features of voltage stabilization, current limiting, and simple operation.

4.Adjustable Output Voltage & Current: output voltage and output current can be continuously

5.adjusted between 0 and nominal value with fine regulating and coarse regulating

6.it has over voltage protection(OVP), over current protection(OCP), over temperature protection

7.Temperature controlled fan cooling, low noise, long life.

8.Dual voltage input and convenient choice.

9.Output Voltage ranges from 0 to rating voltage with continuous adjustment .

Product Features

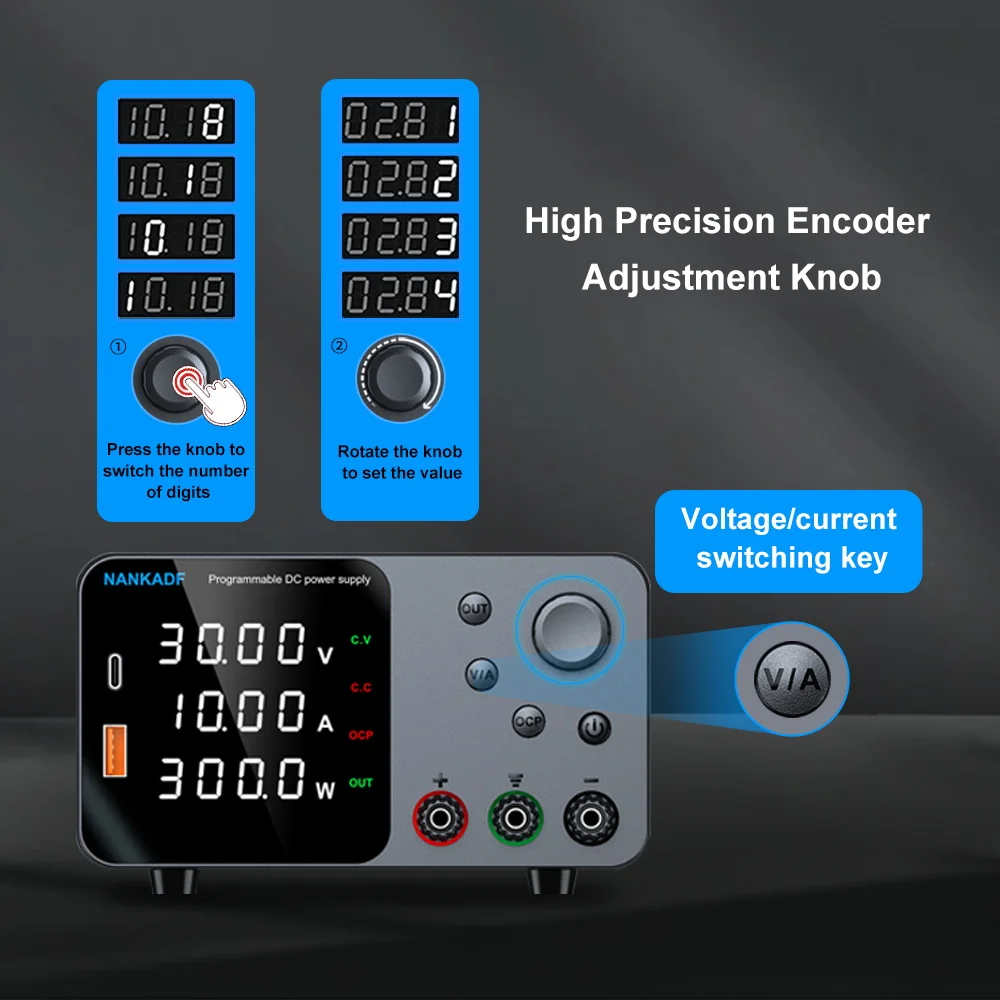

Use coding potentiometer to set voltage and current, setting value can be displayed in advance.

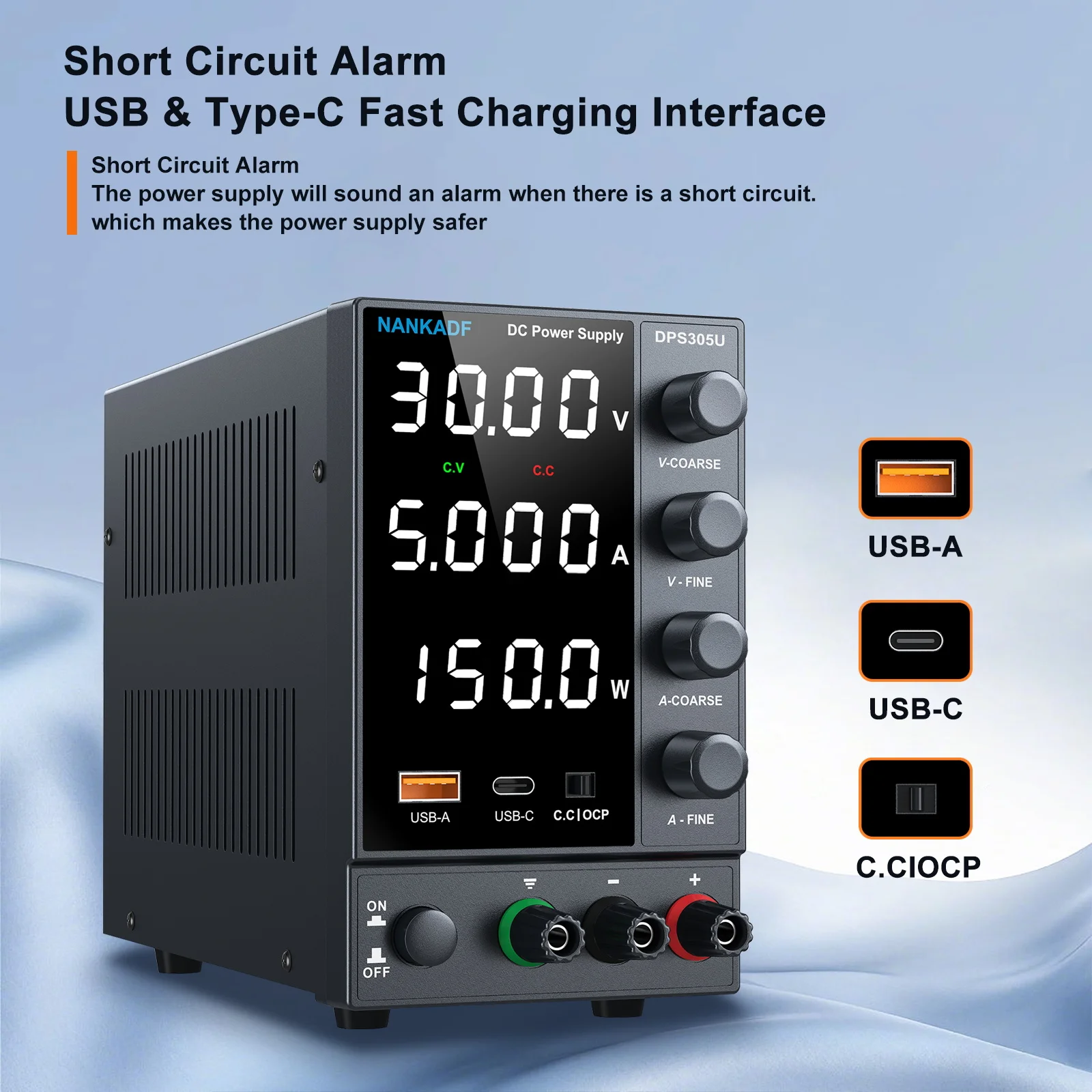

Overload protection function, short circuit stop output.

USB fast charging interface with output display, support a variety of fast charging protocols.

Small size, light weight and sufficient power.

Constant voltage and constant current automatic switching.

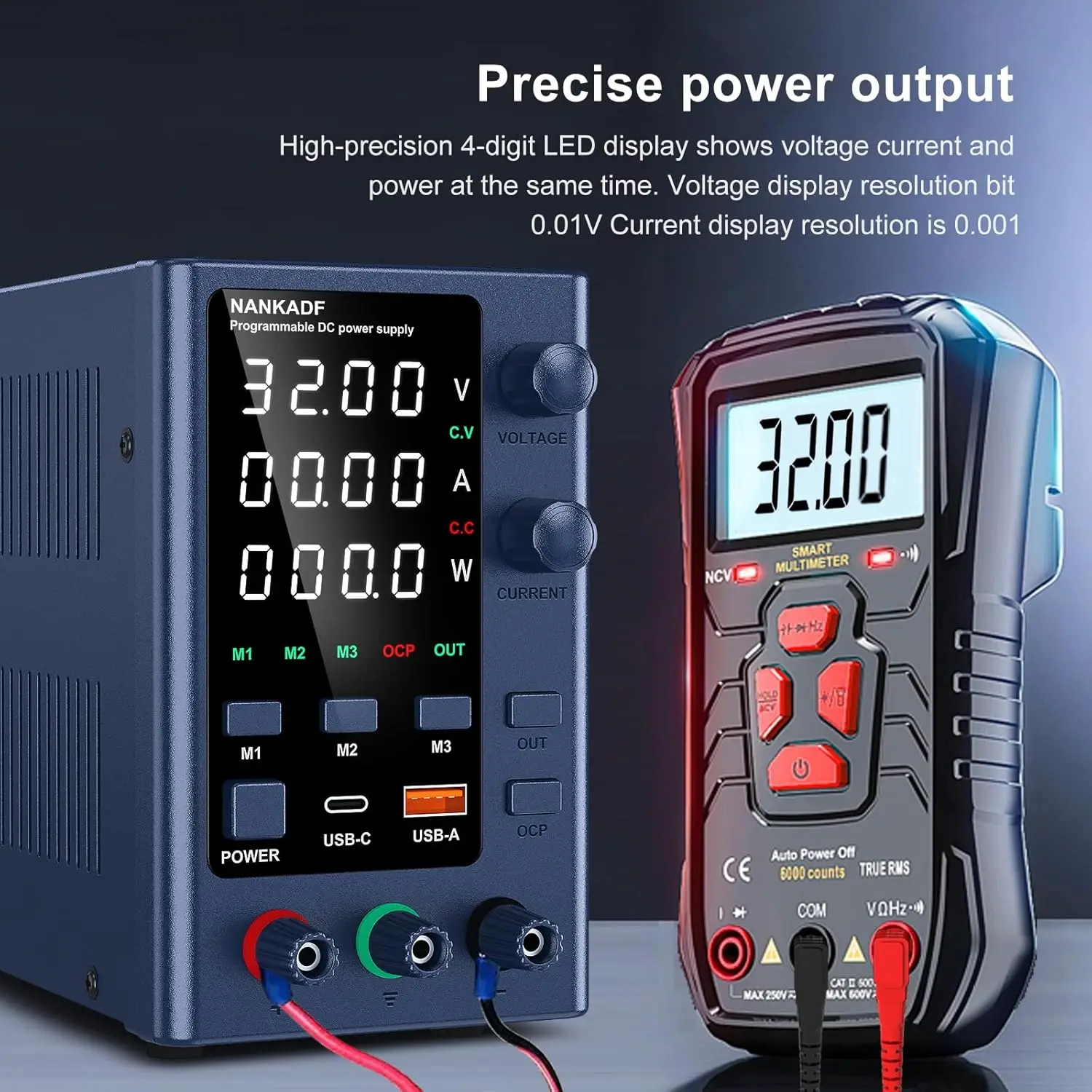

Voltage, current, four-window dual-color display, high precision.

Temperature control fan cooling, low noise, long life.

Translated with DeepL.com (free version)

Application Fields

1.Production line testing.

2.Repairing cell phones, computers and electrical appliances.

3.Product aging and plating.

4.Battery charging.

5.Laboratory, scientific research and teaching.

6.All other occasions that need DC regulated power supply.

More parameters

Model No. GA305H/GA3010H/GA605H/GA1203H

Output Power 160W 320W 310W 360W 320W

Output Voltage 0~32V 0~62V 0~120V

Output Current 0~2A 0~3A 0~5A 0~10A

Auxiliary function USB fast charging output with display, support multiple fast charging protocols.

Protection mode Over-voltage protection, over-current protection, over-temperature protection.

Working Environment

Input power supply: AC 230V/115V±10%; 50Hz/60Hz

Operating temperature: 0℃～40℃;Relative humidity:<80%RH

Storage temperature: -10℃～70℃;Relative humidity:<70%RH

Voltage stabilization CV

Voltage stability: 0.5%±3mV

Load stability: 0.5%±3mV

Ripple voltage: ≤0.5% Vp-p

0 to rated voltage continuously adjustable

Current stabilization CC

Current stability: 0.5%±3mA

Load stability: 0.5%±3mA

Ripple current: ≤0.5% Vp-p

Recovery time: ≤500μS

Temperature coefficient: ≤100ppm/°C

0 to rated current continuously adjustable

Meter display

0.4-inch white light four digital tube two sets of display; 0.25-inch green light three digital tube two sets of display.

Display accuracy: 0.5%±5 words

Display Resolution: Voltage 00.01V, Current 0.001A / USB: Voltage 0.01V, Current 0.01A

Product Characteristics

Product Size: 190mm (L) X 80mm (W) X 145mm (H)

Package Size: 270(L) x 116(W) x 195(H) mm

Bare weight: 1.15Kg

Weight with packing accessories: 1.5Kg

Random accessories

AC power cord x 1, (optional: national standard, American standard, European standard, British standard, etc.)

Operation manual x 1,

Output test cable x 1,
